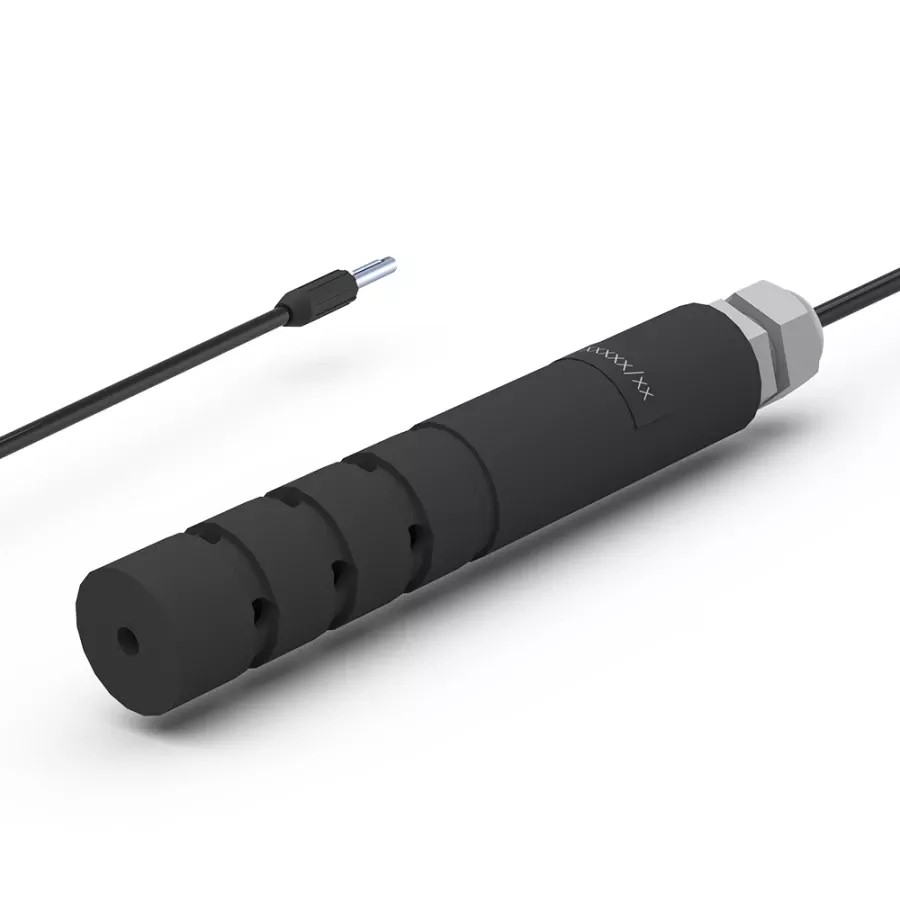

The Marine Silver/Silver Chloride Half Cell is suitable for installation on surface structures such as jetties.
it has been specially designed to allow easy monitoring when connected to a separate high impedance voltmeter (greater than 10 meg Ohm). The electrode is housed in a PVC body with holes to allow the easy flow of water around the electrode. The Half Cell is supplied with 12.5 metres of CSP 55/015 cable. Other cables lengths can be supplied, if required, further details on request.
The cell is long lasting and will give a service life of up to 5 years in ideal conditions.
- Electrical connection: free end
- Output: +42mV @ 25°C to K-Series reference cell
- Accuracy: +/-10mV in 3% sea water.
- Temperature coeff: -0.6mV/°C
- Temperature range: 0-30°C
- Working life: 1 to 5 years
- Weight (cell & cable): 350g
- Size: 140mm long x 25mm diameter
- Packed weight: 0.65Kg
- Dimensions (packed): 26cm x 14cm x 30cm
